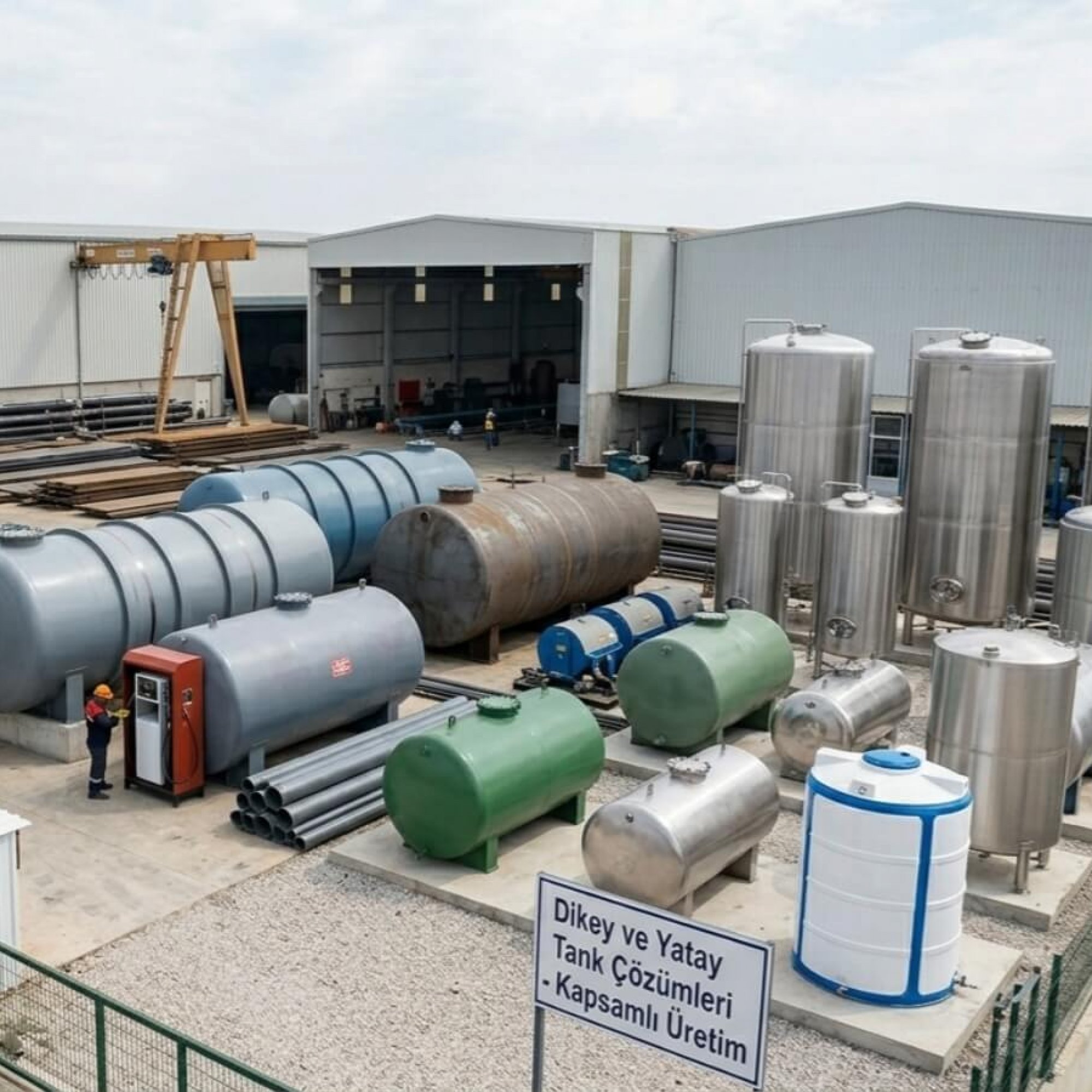

HK Makine Engineering produces high-tech solutions for the safe storage of liquids, gases, and solids at our high-capacity production line in Nizip, Gaziantep. Our designs are based on API 650 and EN 14015 standards, performing static and dynamic load analyses with SolidWorks simulations.
High corrosion-resistant tanks with smooth inner surfaces for concrete additive chemicals such as Polycarboxylate Ether (PCE), Lignosulfonate, and Naphthalene Sulfonate.
Industrial oil storage solutions equipped with jacketed structures or internal coil systems, featuring high insulation values to minimize heat loss.

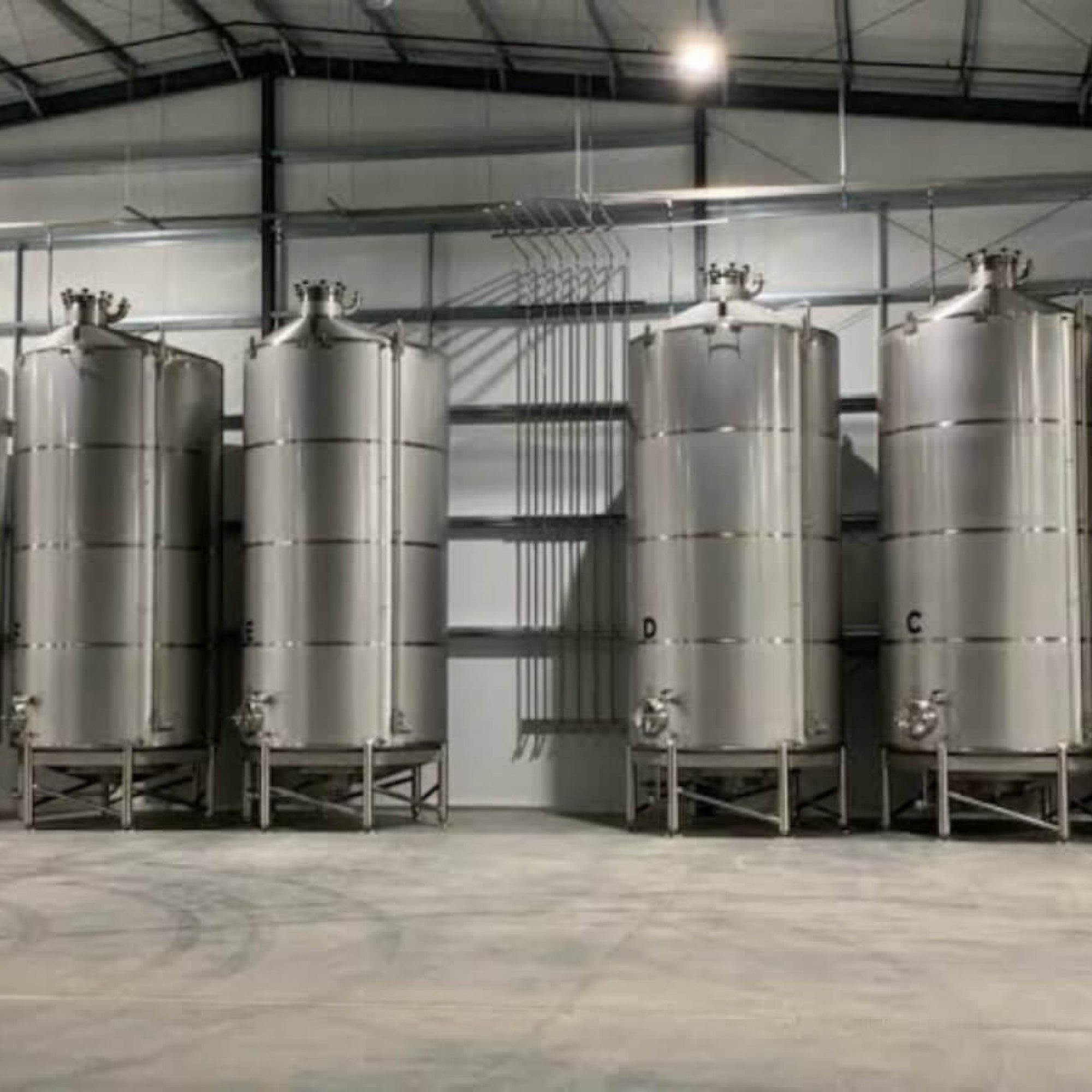

Hygienic storage tanks with mixers made of 304/316 quality stainless steel for molasses, glucose, drinking water, and vegetable oils.

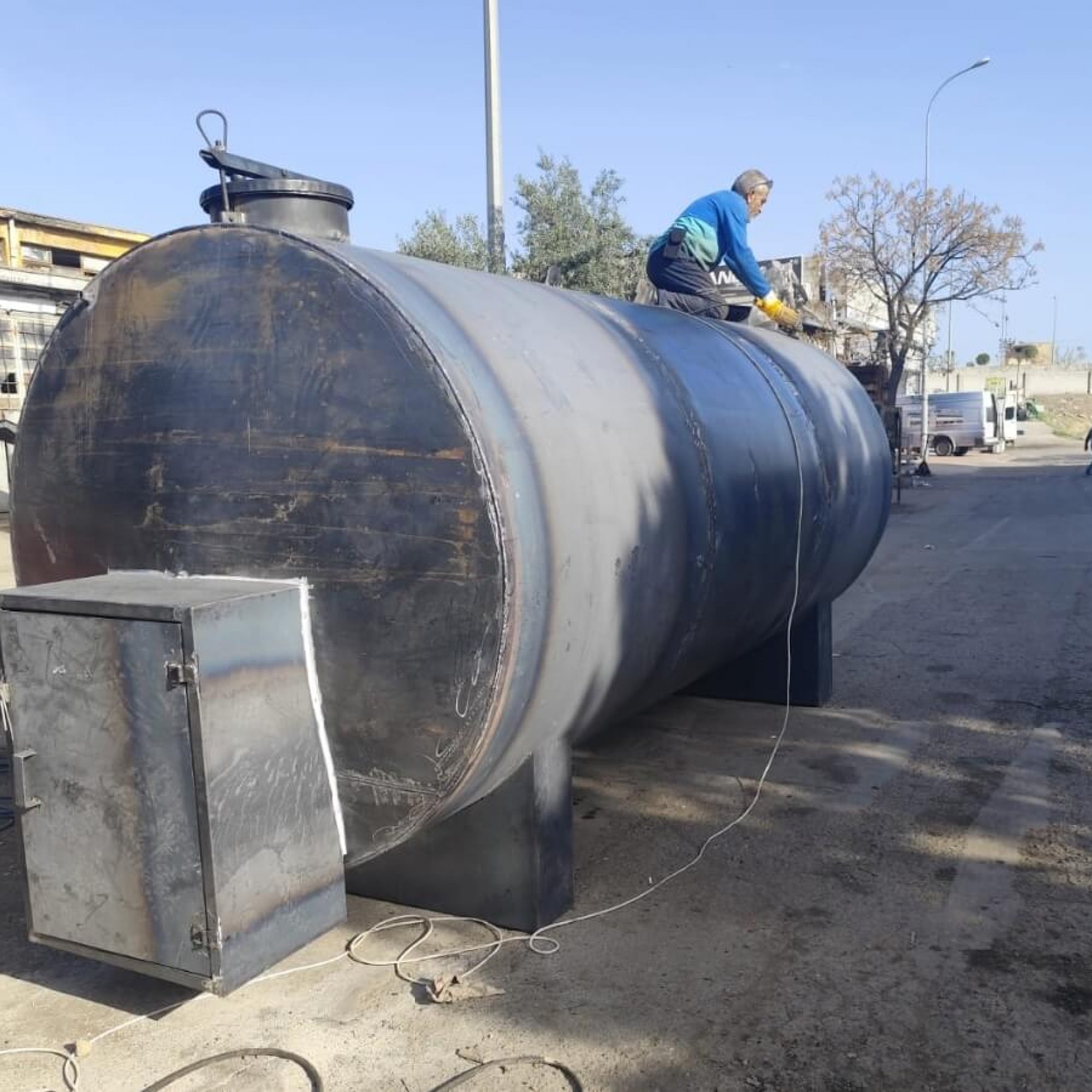

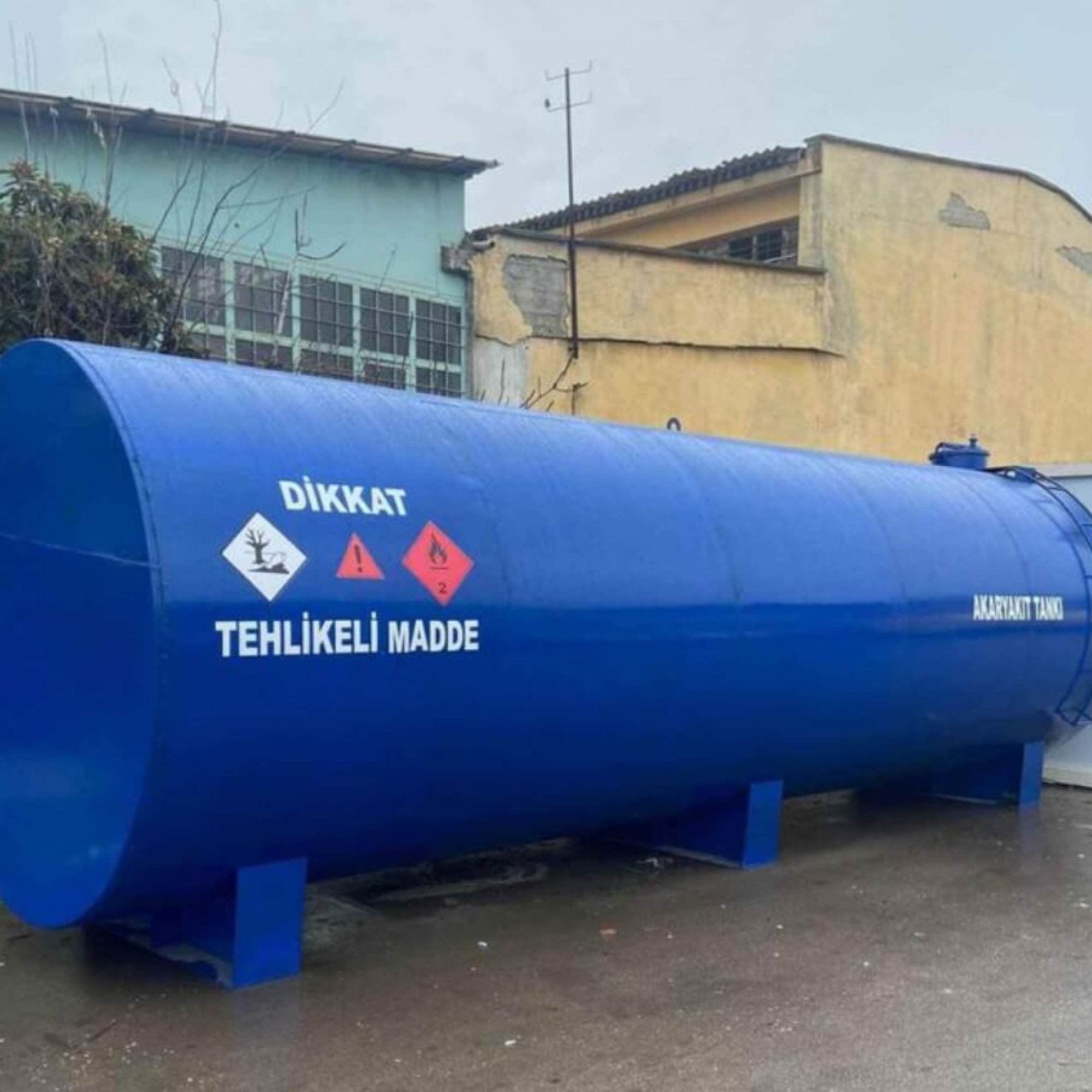

Above-ground/underground fuel tanks for construction sites, automation-compatible, with digital meters, safety valves, and fire resistance.
The data below represents our zero-waste optimized models calculated using standard 6000mm x 1500mm steel sheets. KG calculations are approximate based on ST37 steel density.
| Capacity (m³) | Diameter (Ø) mm | Length (L) mm | Body Shell (mm) | Dished Head (mm) | Approx. Weight (kg) | Application Area |
|---|---|---|---|---|---|---|
| 5 Tons | 1910 | 1500 | 4 mm | 5 mm | ~580 kg | Diesel Site Tank |
| 10 Tons | 1910 | 3000 | 6 mm | 6 mm | ~1.250 kg | PCE & Concrete Additive |
| 15 Tons | 1910 | 4500 | 6 mm | 8 mm | ~1.850 kg | Acid Storage |
| 20 Tons | 2550 | 4500 | 6 mm | 8 mm | ~2.400 kg | Chemical Raw Material |
| 25 Tons | 3180 | 3000 | 8 mm | 8 mm | ~3.100 kg | Stainless Water Tank |
| 30 Tons | 3180 | 4500 | 8 mm | 10 mm | ~4.200 kg | Molasses & Mixer Tank |
| 40 Tons | 3820 | 4500 | 8 mm | 10 mm | ~5.600 kg | Lignosulfonate Storage |
| 50 Tons | 3820 | 4500 | 10 mm | 12 mm | ~7.800 kg | Bitumen & Heated Tank |
| 60 Tons | 3820 | 6000 | 10 mm | 12 mm | ~9.400 kg | Industrial Fuel Tank |
| 80 Tons | 5100 | 4500 | 12 mm | 12 mm | ~12.800 kg | Refinery Storage |
| 100 Tons | 5730 | 4500 | 12 mm | 15 mm | ~16.500 kg | Large Field Assembly Silo |
Our production steps ensure that HK Makine products serve for decades under harsh field conditions:
